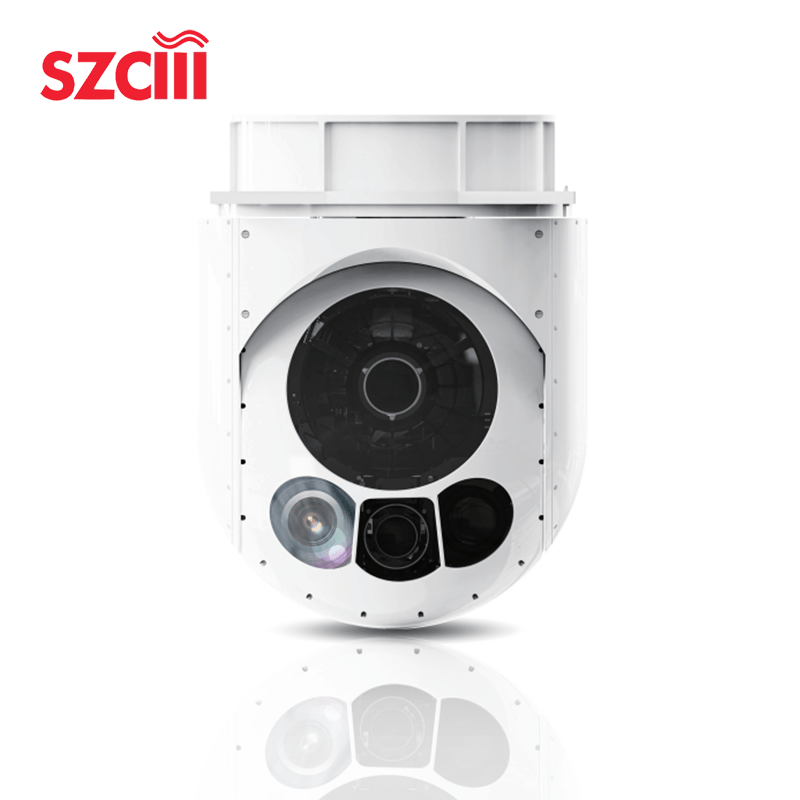

The TS490D is a large-scale intelligent pod. It adopts multi-band co-aperture technology and is equipped with a conductive slip ring for 360° continuous rotation. It is internally equipped with high-definition visible light/near-infrared cameras, mid-wave cooled infrared imaging components, short-wave infrared imaging components and laser ranging devices. It is mainly used for airborne ground imaging detection, identification, tracking, ranging and positioning, laser guidance, etc., meeting the needs of aerial mapping, monitoring, exploration, guidance, etc. It is compatible with all platforms and can be installed on various types of unmanned aircraft and other aviation platforms, as well as on ships and vehicles, suitable for sea and air usage. The optional FlyView self-developed AI recognition and tracking function is available.

Color visible light camera:

Wavelength: 0.4μm to 1.1μm

Resolution: 1920x1080

Field of view: 24°×13.5° to 1.6°×0.9°

Detection range: ≥24km (for a 2.3m×2.3m target)

Identification range: ≥19km (for a 2.3m×2.3m target)

Laser illumination:

Wavelength: 1064nm

Energy: ≥ 90mJ

Distance measurement accuracy: < ±3m

Distance measurement range: ≥ 30km

Illumination range: ≥ 16km

Mid-wave infrared camera:

Wavelength: 3μm to 5μm

Resolution: 1280×1024

Field of view: 24°×19.0° to 3.6°×2.8° / 1.2°×9.6°

Detection range: ≥22km (for a 2.3m×2.3m target)

Identification range: ≥19km (for a 2.3m×2.3m target)

Servo performance:

Target angular velocity accuracy: ≤ 0.1º/s (1σ)

Aiming line stability accuracy: ≤ 10µrad (1σ)

Maximum angular velocity: Azimuth 70°/s, Pitch 35°/s

Azimuth axis range: n × 360° continuous rotation

Pitch axis range: -110° to +20°

Maximum angular acceleration: Azimuth ≥ 185°/s², Pitch ≥ 132°/s²

Short-wave infrared camera:

Wavelength: 1μm to 1.7μm

Resolution: 640x512

Field of view: 27º×21.6º to 2°×1.6° / 0.5°×0.4°

Tracking performance:

Tracking rate: 30 pixels per frame

Minimum target contrast: 8%

Minimum target imaging: 4×3 pixels

Features: Capable of resisting occlusion without loss

Black and white near-infrared camera:

Wavelength: 0.7μm to 0.9μm

Resolution: 1920×1080

Field of view: 1.2° × 0.7°

System parameters:

Dimensions: ≤Φ490mm × 650mm

Weight: 60kg

Power supply: 28V

Total system power consumption: ≤700W

Operating temperature range: -40℃ to +65℃

Continuous operation time: ≥24h

External interfaces and storage formats:

Communication interface: 1 RS422 channel

Video interface: 2 HD-SDI channels

Storage format: Photos in JPEG format, videos in MP4 format
