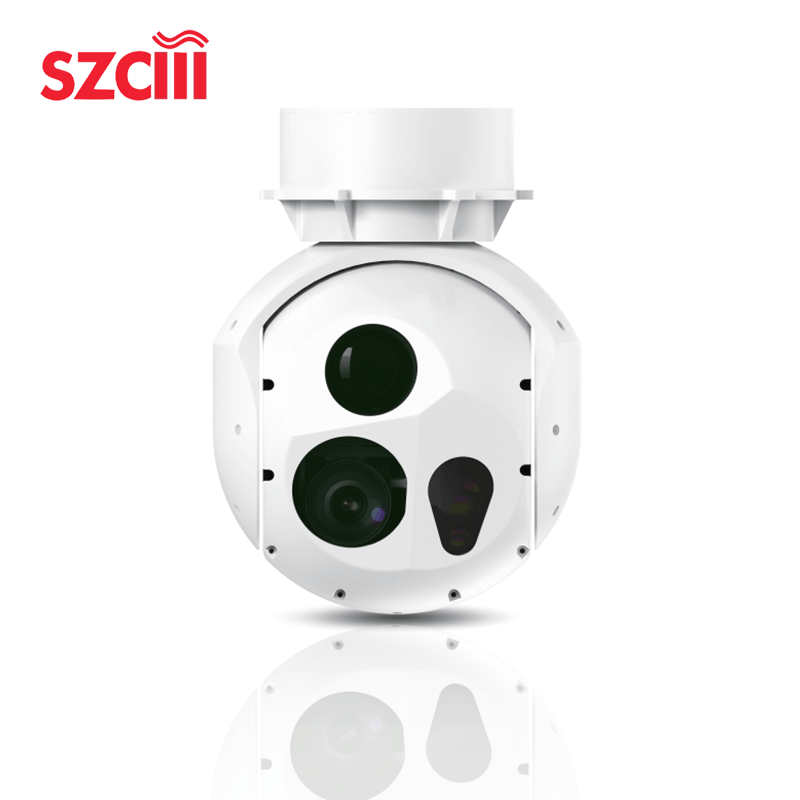

The TS220C is a two-axis medium-sized intelligent pod, equipped with a 45x high-definition visible light camera, mid-wave refrigerated infrared imaging component, and a laser imaging sensor. The high-precision and high-coordination control algorithms maintain stable zooming and imaging effects during flight, supporting electronic zooming and image enhancement functions. Fully compatible with various carrier platforms, it can be installed on various types of unmanned aerial vehicles and other aerospace carriers, as well as on ships and vehicles, meeting requirements for both sea and air operations. It can also be optionally equipped with the AI recognition and tracking function developed by Feilai.

Visible light camera:

Wavelength: 0.4μm to 0.9μm

Resolution: 1920x1080

Focal length: 5.9mm to 265.5mm (45X)

Field of view: 56.3° to 1.9°

Detection range: 6.6km for humans, 15.2km for vehicles

Recognition range: 1.6km for humans, 9.9km for vehicles

Servo performance:

Stability accuracy: ≤ 100 μrad (1σ) (2°/1Hz, 1°/2Hz sway)

Angle measurement accuracy: ≤ 2 mrad

Maximum angular velocity: ≥ 60°/s

Maximum angular acceleration: ≥ 90°/s²

Azimuth axis range: n×360° continuous rotation

Pitch axis range: -110° to +10°

Infrared camera:

Wavelength: 3μm - 5μm

Resolution: 640x512

Pixel size: 15μm

NETD: 25mk

Focal length: 18mm - 275mm / F5.5

Field of view: 29.8° - 2° (±5%)

Detection range: 3km for humans, 15km for vehicles

Identification range: 1km for humans, 6km for vehicles

Laser ranging:

Wavelength: 1064nm ± 10nm

Ranging range: ≥ 8000m

Energy: ≥ 40mJ

Ranging accuracy: ≤ ± 2m

Ranging frequency: single shot, 1Hz, 5Hz

Tracking performance:

Tracking rate: 30 pixels per frame

Minimum target contrast: 8%

Minimum target imaging: 4×3 pixels

Features: Capable of resisting occlusion without loss

System parameters:

Dimensions: ≤Φ220mm × 302.5mm

Weight: ≤7kg

Power supply: 28V

Power consumption: Average ≤ 80W, Peak ≤ 200W

Operating temperature: -20℃ to 55℃

Storage format:

Photo format: JPEG

Video format: MP4

External Interfaces:

Control Interface: 2 channels of RS422, Network Control Interface

Video Interface: Network Control Interface
