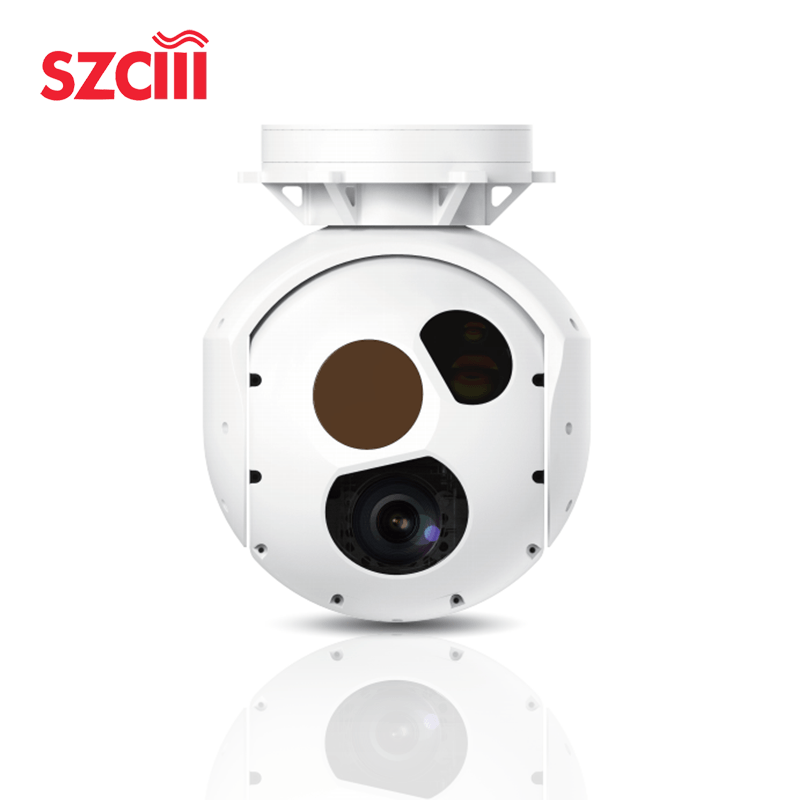

The TS200C is a two-axis medium-sized intelligent pod, equipped with a 30x continuous zoom high-definition visible light camera, mid-wave refrigerated infrared imaging component, laser rangefinder, high-precision and high-coordination control algorithms that maintain stable zooming and imaging effects during flight, supporting electronic zooming and image enhancement functions. It is suitable for various unmanned aircraft platforms and can perform tasks both day and night. It is mainly used for conducting search, detection, identification, tracking, ranging, positioning, guidance, and scene matching for airborne ground targets. It can also be optionally equipped with the AI recognition and tracking function developed by Feilian.

Visible light camera:

Wavelength: 0.4μm to 0.9μm

Resolution: 1920x1080

Focal length: 4.3mm to 129mm

Field of view: 63.7° to 2.3°

Detection range: 6.6km for humans, 15.2km for vehicles

Recognition range: 1.6km for humans, 9.9km for vehicles

Servo performance:

Stability accuracy: ≤ 100 μrad (1σ) (2°/1Hz, 1°/2Hz sway)

Angle measurement accuracy: ≤ 2 mrad

Maximum angular velocity: ≥ 60°/s

Azimuth axis range: n×360° continuous rotation

Pitch axis range: -120° to +20°

Maximum angular acceleration: ≥ 90°/s²

Infrared camera:

Wavelength: 3μm - 5μm

Resolution: 640x512

Pixel size: 15μm

NETD: 25mk

Focal length: 40mm - 200mm / F4.0

Field of view: 13.75° - 2.75° (±5%)

Detection range: 3km for humans, 15km for vehicles

Identification range: 1km for humans, 6km for vehicles

Laser ranging:

Wavelength: 1535nm ± 10nm

Ranging range: ≥ 8000m

Ranging accuracy: ≤ ± 2m

Ranging frequency: single shot, 1Hz, 5Hz

Tracking performance:

Tracking rate: 30 pixels per frame

Minimum target contrast: 8%

Minimum target imaging: 4×3 pixels

Feature: Capable of maintaining tracking without loss in the presence of occlusions

System parameters:

Dimensions: ≤Φ200mm × 257mm

Weight: ≤ 5.2kg

Power supply: 28V

Power consumption: Average ≤ 50W, Peak ≤ 150W

Operating temperature: -20℃ to 55℃

Storage format:

Photo format: JPEG

Video format: MP4

External interfaces:

Communication interface: 100Mbps network, RS422 (TTL/RS232 options available)

Video interface: 100Mbps network (SDI option available)
