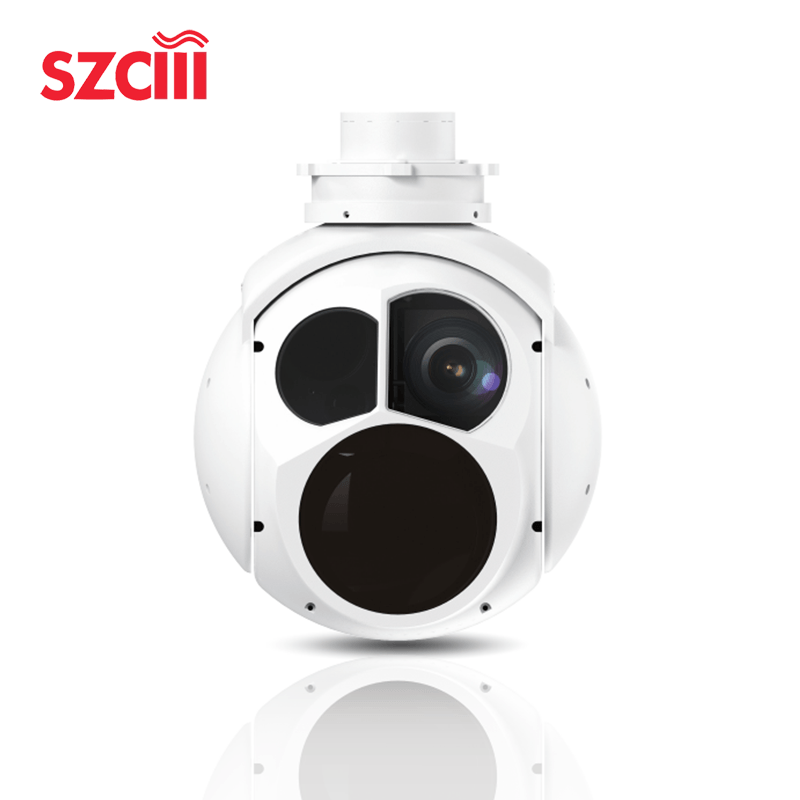

TS170C is a two-axis small-sized intelligent pod. It is equipped with a conductive slip ring for 360° continuous rotation. It is internally equipped with a 30x continuous zoom high-definition visible light camera, a long-wave non-cooled infrared imaging component, and a laser rangefinder. The high-precision and high-coordination control algorithm ensures stable zooming and imaging effects during flight. It supports electronic zooming and image enhancement functions. It is fully compatible with various carriers, such as various types of unmanned aerial vehicles and also can be installed on ships and vehicle carriers, meeting the requirements for sea and air use. It can be optionally equipped with the self-developed AI recognition and tracking function of Feilai.

Visible light camera:

Wavelength: 0.4μm to 0.9μm

Resolution: 1920x1080

Focal length: 5.1mm to 153mm (30X)

Field of view: 55.27° to 2.66°

Detection range: 6.6km for humans, 15.2km for vehicles

Identification range: 1.6km for humans, 9.9km for vehicles -

Servo performance:

Stability accuracy: ≤ 100 μrad (1σ) (2°/1Hz, 1°/2Hz sway)

Angle measurement accuracy: ≤ 2 mrad

Maximum angular velocity: ≥ 50°/s

Azimuth axis range: n×360° continuous rotation

Pitch axis range: -110° to +10°

Maximum angular acceleration: ≥ 90°/s²

Infrared camera:

Wavelength: 8μm - 14μm

Resolution: 640×512

Pixel size: 12μm

NETD: 40mk

Focal length: 63mm/F0.83

Field of view: 6.9°×5.5°

Detection range: 1.8km for humans, 10km for vehicles

Identification range: 0.9km for humans, 5.3km for vehicles

Laser ranging:

Wavelength: 1535nm

Ranging range: 50m to 4km

Ranging accuracy: ±2m

Ranging frequency: 1Hz

Tracking performance:

Tracking rate: 30 pixels per frame

Minimum target contrast: 8%

Minimum target imaging: 4×3 pixels

Features: Capable of resisting occlusion without loss

System parameters:

Dimensions: ≤Φ170mm x 220.1mm

Weight: ≤2.55kg

Power supply: 24V

Power consumption: Average ≤ 20W, Peak ≤ 90W

Operating temperature: -20℃ to 55℃

Storage format:

Photo format: JPEG

Video format: MP4

External interfaces:

Communication interface: 1 Gigabit Ethernet (1 RS422 option available)

Video interface: 1 Gigabit Ethernet
