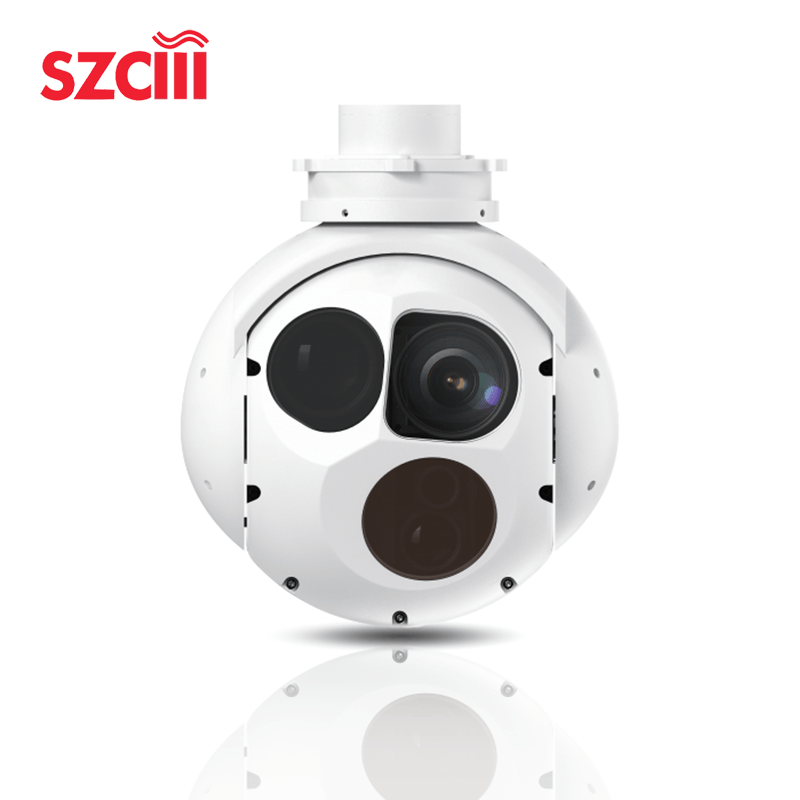

TS155C is a two-axis small-sized intelligent pod. It is equipped with a conductive slip ring for 360° continuous rotation. It is internally equipped with a 30x continuous zoom high-definition visible light camera, a long-wave non-cooled infrared imaging component, and a laser illuminator. The high-precision and high-coordination control algorithm ensures stable zooming and imaging effect during flight. It supports electronic zooming and image enhancement functions. It is fully compatible with various carriers, such as various types of unmanned aerial vehicles and also can be installed on ships and vehicle carriers, meeting the needs for sea and air use. It can be optionally equipped with the self-developed AI recognition and tracking function of Feilai.

Visible light camera:

Wavelength: 0.4μm to 0.9μm

Resolution: 1920x1080

Focal length: 5.1mm to 153mm

Field of view: 55.3º to 2.6º

Detection range: 6.6km for humans, 15.2km for vehicles

Identification range: 1.6km for humans, 9.9km for vehicles

Servo performance:

Stability accuracy: ≤ 100 μrad (1σ) (2°/1Hz, 1°/2Hz sway)

Angle measurement accuracy: ≤ 2 mrad

Maximum angular velocity: ≥ 50º/s

Azimuth axis range: n × 360° continuous rotation

Pitch axis range: -110° to +10°

Maximum angular acceleration: ≥ 90º/s²

Infrared camera:

Wavelength: 8μm - 14μm

Resolution: 640×512

Pixel size: 12μm

NETD: 50mk

Focal length: 35mm/F1.0

Field of view: 12.5°×10°

Detection range: 1.2km for humans, 4.5km for vehicles

Identification range: 0.5km for humans, 2.9km for vehicles

Laser ranging:

Wavelength: 1064nm

Ranging range: 120m - 5km

Energy: ≥ 25mJ

Ranging accuracy: ≤ 3m

Ranging frequency: 1Hz/5Hz

Tracking performance

Tracking rate: 30 pixels per frame

Minimum target contrast: 8%

Minimum target imaging: 4×3 pixels

Features: Capable of resisting occlusion without loss

System parameters:

Dimensions: ≤Φ155mm x 205.1mm

Weight: ≤2.6kg

Power supply: 24V

Power consumption: Average ≤ 50W, Peak ≤ 150W

Operating temperature: -20℃ to 55℃

Storage format:

Photo format: JPEG

Video format: MP4

External interfaces:

Communication interface: 1 RS422 interface or 1 100Mbps network interface

Video interface: 1 100Mbps network interface
