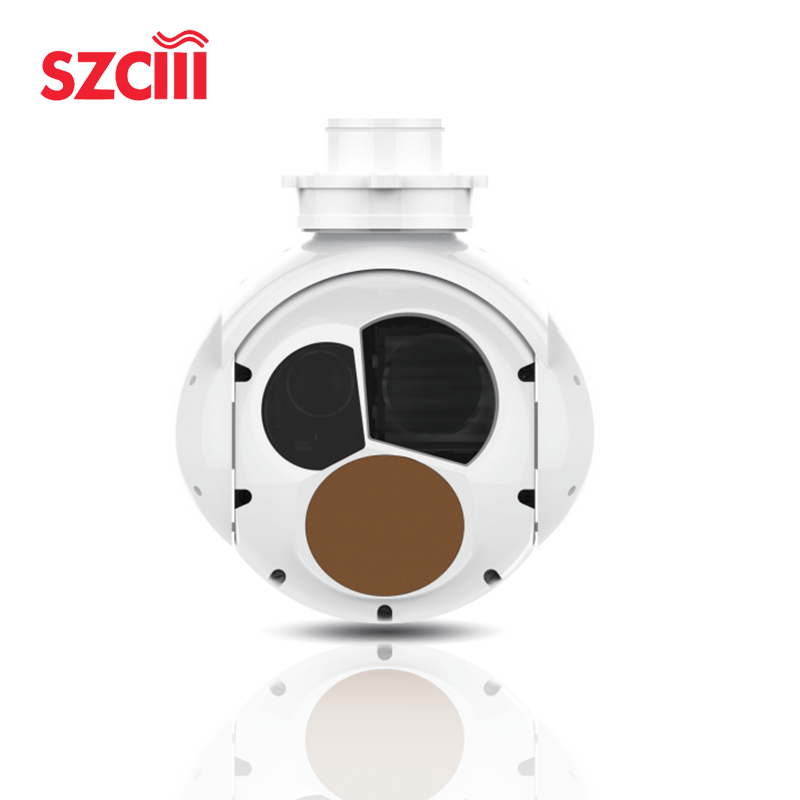

The TS150C is a two-axis small-sized intelligent pod. It is equipped with a conductive slip ring for 360° continuous rotation. It is internally equipped with a 30x high-definition visible light camera, a long-wave non-cooled infrared imaging component, and a laser rangefinder. The high-precision and high-coordination control algorithm ensures stable zooming and imaging effect during flight. It supports electronic zooming and image enhancement functions. It is fully compatible with various carriers, including unmanned aircraft, as well as ships and vehicles, meeting the requirements for sea and air use. It can be optionally equipped with the AI recognition and tracking function developed by Feilai.

Visible light camera:

Wavelength: 0.4μm to 0.9μm

Resolution: 1920x1080

Focal length: 5.1mm to 153mm

Field of view: 55.3° to 2.6°

Detection distance: 6.6km for humans, 15.2km for vehicles

Recognition distance: 1.6km for humans, 9.9km for vehicles

Servo performance:

Stability accuracy: ≤ 100 μrad (1σ) (2°/1Hz, 1°/2Hz sway)

Angle measurement accuracy: ≤ 2 mrad

Maximum angular velocity: ≥ 50º/s

Azimuth axis range: n × 360° continuous rotation

Pitch axis range: -110° to +10°

Maximum angular acceleration: ≥ 90º/s²

Infrared camera:

Wavelength: 8μm - 14μm

Resolution: 640×512

Pixel size: 12μm

NETD: 50mk

Focal length: 50mm/F1.2

Field of view: 8.8°×7°

Detection range: 1.4km for humans, 8.4km for vehicles

Identification range: 0.7km for humans, 4.2km for vehicles

Tracking performance:

Tracking rate: 30 pixels per frame

Minimum target contrast: 8%

Minimum target imaging: 4×3 pixels

Feature: Capable of resisting occlusion without loss

System parameters:

Dimensions: ≤Φ150mm x 205mm

Weight: ≤2kg

Power supply: 24V

Power consumption: Average ≤20W, Peak ≤50W

Operating temperature: -20℃ to 55℃

Storage format:

Photo format: JPEG

Video format: MP4

External Interfaces:

Communication Interface: 100Mbps network, RS422 (TTL/RS232 options available)

Video Interface: 100Mbps network (SDI option available)
