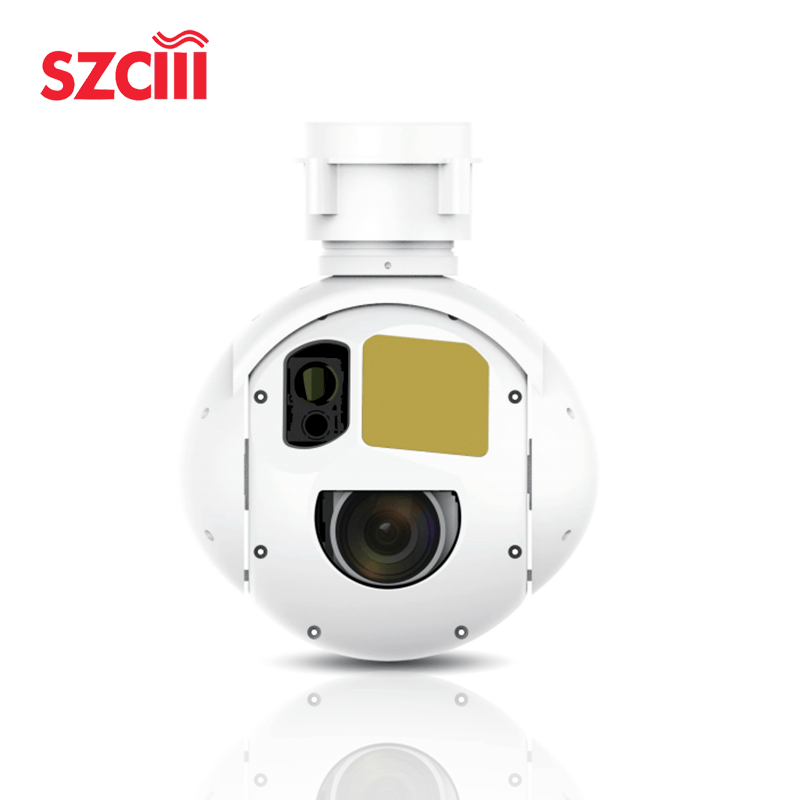

TS135C is a two-axis small intelligent pod. It uses an electrically conductive slip ring for 360° continuous rotation. It is equipped with a 30x high-definition visible light camera, a long-wave non-cooled infrared imaging component, and a laser rangefinder. The high-precision and high-coordination control algorithm ensures stable zooming and imaging quality during flight. It supports electronic zooming and image enhancement functions. It is fully compatible with various carriers, including unmanned aircraft, as well as ships and vehicle carriers, meeting the requirements for sea and air use. It can be optionally equipped with the self-developed AI recognition and tracking function of Feilian.

Visible light camera:

Wavelength: 0.4μm to 0.9μm

Resolution: 1920x1080

Focal length: 5.1mm to 153mm

Field of view: 55.3º to 2.6º

Detection range: 6.6km for humans, 15.2km for vehicles

Identification range: 1.6km for humans, 9.9km for vehicles

Servo performance:

Stability accuracy: ≤ 100 μrad (1σ) (2°/1Hz, 1°/2Hz sway)

Maximum angular velocity: ≥ 50º/s

Azimuth axis range: n×360° continuous rotation

Pitch axis range: -110° to +10°

Maximum angular acceleration: ≥ 90º/s²

Infrared camera:

Wavelength: 8μm - 14μm

Resolution: 640×512

Pixel size: 12μm

NETD: 50mk

Focal length: 35mm/F1.0

Field of view: 12.5º×10º

Detection range: 0.8km for humans, 5km for vehicles

Identification range: 0.7km for humans, 4.2km for vehicles

Laser ranging:

Wavelength: 905nm/1535nm (optional)

Ranging range: 1.5km/3km

Ranging accuracy: 3m

Ranging frequency: 1Hz

Tracking performance:

Tracking rate: 30 pixels per frame

Minimum target contrast: 8%

Minimum target imaging: 4×3 pixels

Features: Capable of resisting occlusion without loss

System parameters:

Dimensions: ≤Φ135mm x 194mm

Weight: ≤1.15kg

Power supply: 12V

Power consumption: Average ≤15W, Peak ≤30W

Operating temperature: -20℃ to 55℃

Storage format:

Photo format: JPEG

Video format: MP4

External interfaces:

Communication interface: 100Mbps network, RS422 (TTL/RS232 options available)

Video interface: 100Mbps network (SDI option available)
