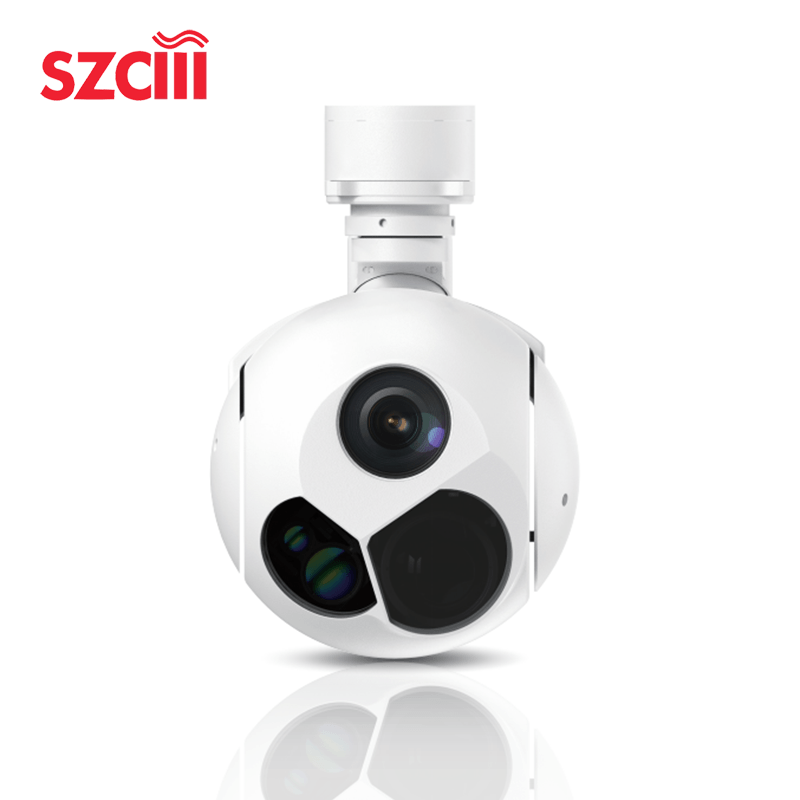

TS130CT is a three-axis small intelligent pod. It is equipped with a conductive slip ring for 360° continuous rotation. It is internally equipped with a 30x high-definition visible light camera, a long-wave non-cooled infrared imaging component, and a laser rangefinder. The high-precision and high-coordination control algorithm ensures stable zooming and imaging quality during flight. It supports electronic zooming and image enhancement functions. It is fully compatible with various types of unmanned aircraft and can be installed on ships, vehicles, etc., meeting the requirements for sea and air use. It can be optionally equipped with the AI recognition and tracking function developed by Feilian.

Visible light camera

Wavelength: 0.4μm to 0.9μm

Resolution: 1920x1080

Focal length: 5.1mm to 153mm

Field of view: 55.3º to 2.6º

Detection range: 6.6km for humans, 15.2km for vehicles

Identification range: 1.6km for humans, 9.9km for vehicles

Servo performance

Stability accuracy ≤ 100 μrad (1σ) (2°/1Hz, 1°/2Hz sway)

Maximum angular velocity ≥ 50°/s

Azimuth axis range: continuous rotation of n×360°

Pitch axis range: -110° to +10°

Roll axis range: -40° to +40°

Maximum angular acceleration ≥ 90°/s²

Infrared camera

Wavelength: 8μm - 14μm

Resolution: 640×512

Pixel size: 12μm NETD 50mk

Focal length: 35mm / F1.0

Field of view: 12.5° × 10°

Detection distance: 1km for humans, 6km for vehicles

Recognition distance: 0.5km for humans, 2.9km for vehicles

Laser ranging

Wavelength 1535nm

Ranging range 3km

Ranging accuracy ±1m

Ranging frequency 1Hz/5Hz

Tracking performance

Tracking rate: 30 pixels per frame

Minimum target contrast: 8%

Minimum target imaging: 4×3 pixels

Features: Capable of resisting occlusion without loss

System parameters

Size ≤ Φ130mm × 194mm

Weight ≤ 1.2kg

Power Supply 12V

Power Consumption Average ≤ 18W, Peak ≤ 45W

Operating Temperature -20℃ to 55℃

Storage format

Photo format: JPEG

Video format: MP4

External interfaces

Communication interface: 1 x 100Mbps network / RS422

Video interface: 1 x 100Mbps network
