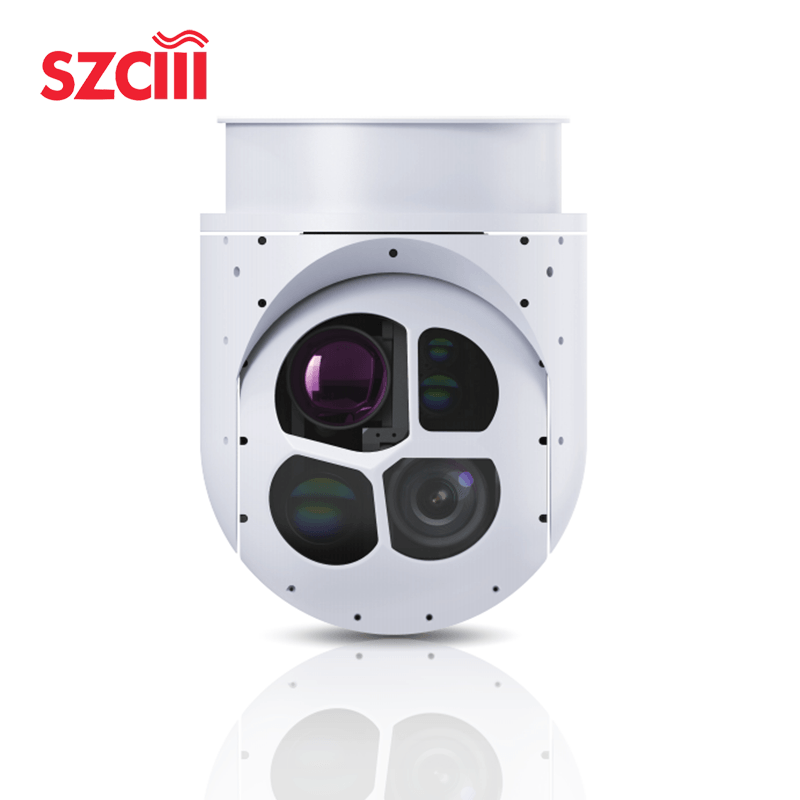

The TS300D is a large-scale intelligent pod. It adopts a two-axis four-frame gyroscope stabilization platform and is equipped with a conductive slip ring for 360° continuous rotation. It is internally equipped with high-definition visible light/near-infrared cameras, mid-wave refrigerated infrared imaging components, short-wave infrared imaging components, and laser ranging devices. It is mainly used for airborne ground imaging detection, identification, tracking, ranging and positioning, laser guidance, etc., meeting the needs of aerial surveying, monitoring, exploration, guidance, etc. It is compatible with all types of aircraft carriers, and can be installed on various types of unmanned aircraft, as well as on ships and vehicles, meeting sea and air usage requirements. The optional feature of the flight view self-developed AI recognition and tracking function is available.

Visible light/near-infrared zoom camera:

Wavelength: 0.4μm to 1.1μm

Resolution: 1920x1080

Focal length: 10.5mm to 315mm

Horizontal field of view: 35º to 1.3º

Detection range: 20km for humans, 26km for vehicles

Pixel size: 3.5μm

Identification range: 10km for humans, 13km for vehicles

Laser illumination:

Wavelength: 1064 ± 0.01 nm

Energy: 60 mJ

Distance measurement accuracy: 2 m

Distance measurement range: 200 m to 10 km

Illumination range: ≥ 6 km

Servo performance:

Target angular velocity accuracy: ≤ 0.1º/s (1σ)

Maximum angular velocity: Azimuth ≥ 60º/s, Pitch ≥ 60º/s

Azimuth axis range: Continuous rotation of n × 360°

Pitch axis range: -120° to +90°

Maximum angular acceleration: Azimuth ≥ 60º/s², Pitch ≥ 60º/s²

Stabilization accuracy of aiming line: ≤ 20µrad (1σ)

Mid-wave refrigerated infrared camera:

Wavelength: 3.7μm to 4.8μm

Resolution: 640x512

Pixel size: 15μm

Focal length: 15mm to 300mm / F4.0

Field of view: 35° × 1.8°

Detection range: 3km for humans, 15km for vehicles

Identification range: 1km for humans, 6km for vehicles

Short-wave infrared camera:

Wavelength: 0.9μm to 1.7μm

Resolution: 640x512

Focal length: 300mm

Field of view: 1.8°

Tracking performance:

Tracking rate: 30 pixels per frame

Minimum target contrast: 8%

Minimum target imaging: 4×3 pixels

Features: Capable of resisting occlusion without loss

System parameters:

Dimensions: ≤Φ310mm × 415mm

Weight: 27kg

Power supply: 28V

Power consumption: Average ≤ 300W, Peak ≤ 600W

Operating temperature: -40℃ to +65℃

Continuous working time: ≥ 24h

External interfaces and storage format:

Communication interface: 1 RS422 channel

Video interface: 2 HD-SDI channels

Storage format:

Photo: JPEG

Video: MP4
