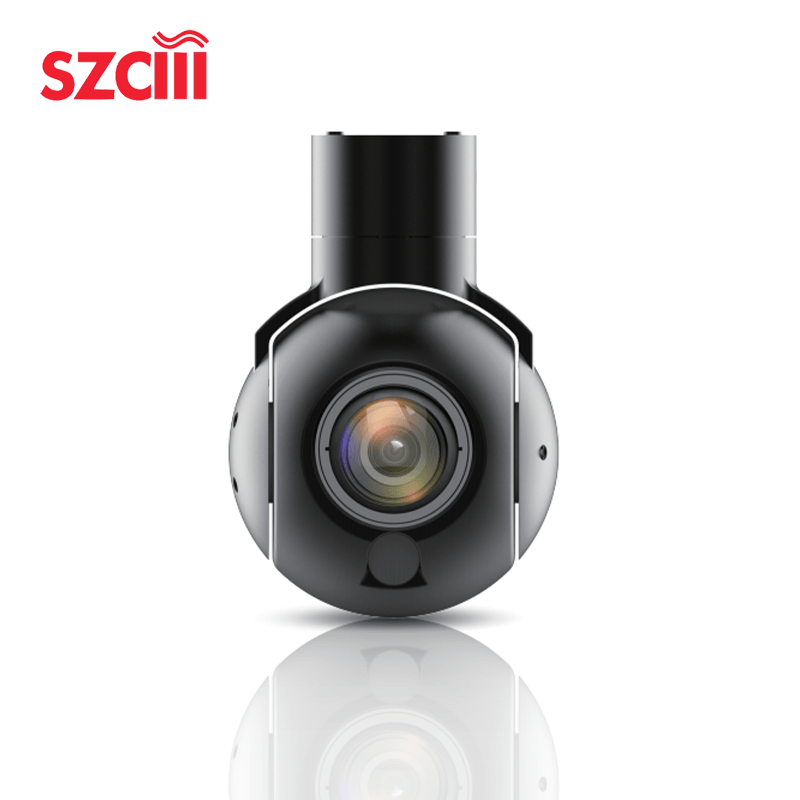

The TS90B is a compact, intelligent gimbal featuring a lightweight industrial design and a weight of ≤500g. It incorporates a two-axis gyro-stabilized platform, a built-in 2K high-definition visible-light camera, and an uncooled long-wave infrared (LWIR) imaging module. High-precision, highly coordinated control algorithms ensure stable zooming and imaging performance during flight, while support for electronic zoom and image enhancement capabilities facilitates ground-based imaging, detection, identification, and tracking. It is designed to meet the needs of aerial mapping, surveillance, and inspection, and offers an optional, in-house developed AI-based recognition and tracking function.

Visible-light camera：

Wavelength: 0.4 μm–0.9 μm

Resolution: 2688×1520

Focal length: 25 mm

Field of view: 16.9°×9.6°

Detection range: Human 1.1 km, Vehicle 6.5 km

Recognition range: Human 0.3 km, Vehicle 1.6 km

Servo Performance：

Stabilization accuracy: ≤100 μrad

Maximum angular velocity: ≥60°/s

Azimuth axis range: ±160°

Pitch axis range: -120° to +60°

Infrared Camera:

Wavelength: 8μm–14μm

Resolution: 640×512

Pixel Pitch: 12μm

NETD: 50mK

Focal Length: 35mm/F1.0

Field of View: 12.5°×10°

Detection Range: Human 1km, Vehicle 6km

Recognition Range: Human 0.5km, Vehicle 2.9km

Tracking Performance:

Tracking rate: 56 pixels/frame

Minimum target contrast: 5%

Features: Capable of maintaining tracking despite occlusion

System Parameters:

Dimensions: ≤φ90mm × 130mm

Weight: ≤500g

Power Supply: 12V

Power Consumption: Average ≤15W, Peak ≤40W

Operating Temperature: -20°C to 55°C

Storage Formats:

Photo format: JPEG

Video format: MP4

Communication interface: 1 x RS422

Video interface: 1 x Network port
