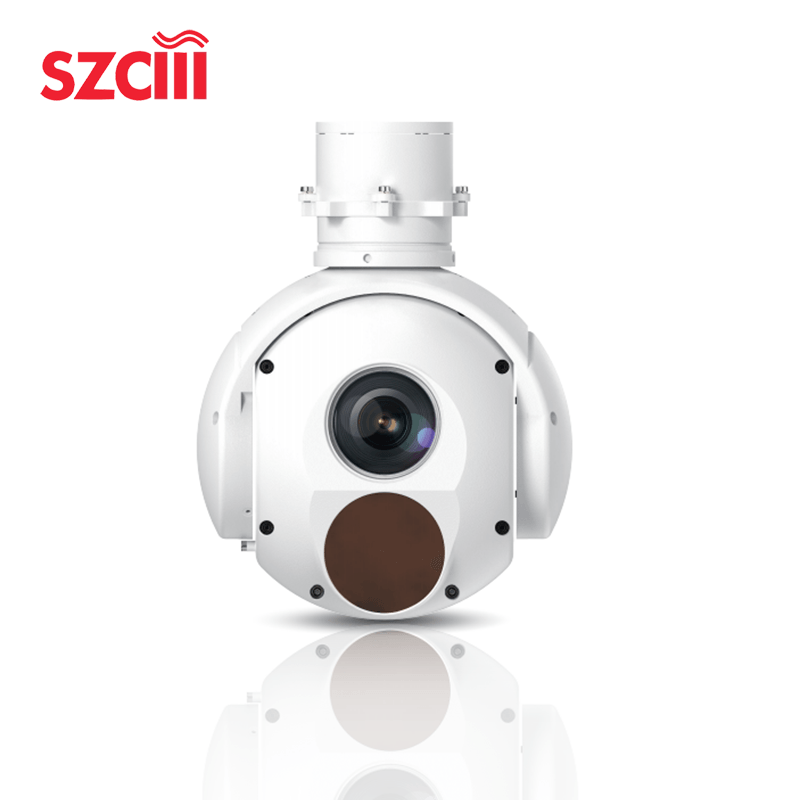

TS120B is a small intelligent pod equipped with a two-axis stabilization platform. It uses an electrically conductive slip ring for 360° continuous rotation. It is equipped with a visible light camera and a laser rangefinder. The high-precision and high-coordination control algorithm ensures stable zooming and imaging quality during flight. It supports electronic zooming and image enhancement functions. It is mainly used for ground imaging detection, recognition, and tracking, meeting the needs of aerial surveying, monitoring, and exploration. The optional feature is the self-developed AI recognition and tracking function by Feilian.

Visible Light Camera：

Wavelength: 0.4μm to 0.9μm

Resolution: 1920x1080

Focal length: 5.1mm to 153mm

Field of view: 55.3º to 2.6º

Detection distance: 6.6km for humans, 15.2km for vehicles

Identification distance: 1.6km for humans, 9.9km for vehicles

Servo Performance：

Angle measurement accuracy ≤ 2 mrad

Stability accuracy ≤ 100 μrad (1σ) (2°/1Hz, 1°/2Hz sway)

Maximum angular velocity ≥ 50º/s

Azimuth axis range: continuous rotation of n × 360°

Pitch axis range: -110° to +10°

Maximum angular acceleration ≥ 90º/s²

Tracking Performance：

Tracking rate: 30 pixels per frame

Minimum target contrast: 8%

Minimum target imaging: 4×3 pixels

Feature: Capable of resisting occlusion without loss

Laser ranging：

Wavelength: 1535 ± 10 nm

Ranging range: ≥ 3000 m

Ranging accuracy: ± 1 m

Ranging frequency: single shot, 1 Hz, 5 Hz

System Parameters:

Dimensions: ≤Φ120mm x 171mm

Weight: ≤920g

Power supply: 12V

Power consumption: Average ≤ 20W, Peak ≤ 80W

Operating temperature: -20℃ to 55℃

Storage format

Photo format: JPEG

Video format: MP4

External interfaces

Communication interface: 100Mbps network, RS422 (TTL/RS232 optional)

Video interface: 100Mbps network (SDI optional)
