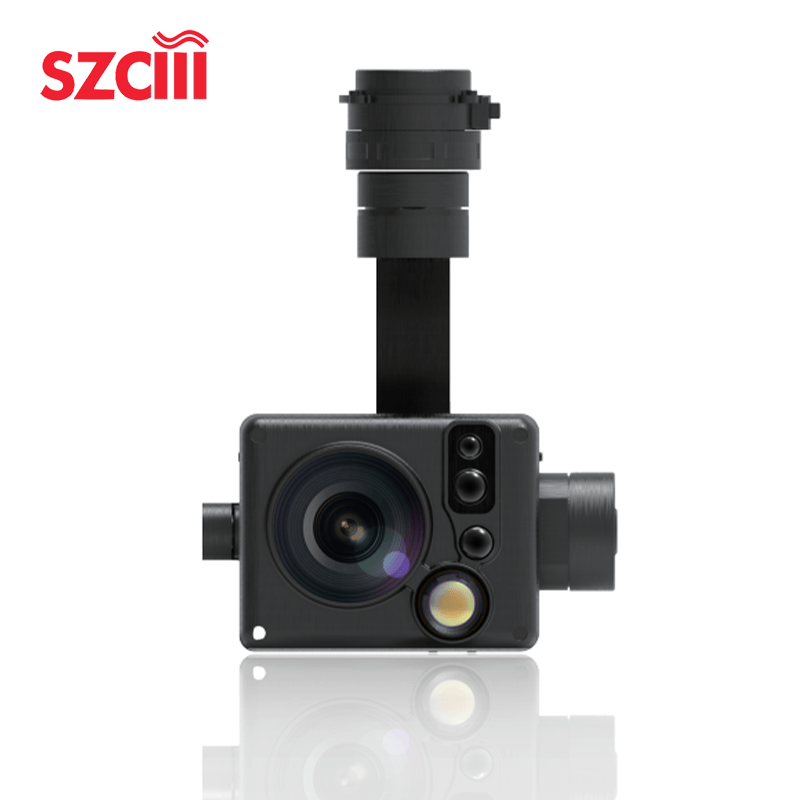

The SZCIII PT135DT is a compact, intelligent gimbal system featuring a three-axis gyro-stabilized platform. It integrates a 30x HD visible-light camera, an uncooled long-wave infrared (LWIR) imaging module, and a laser rangefinder. Designed primarily for airborne ground imaging, detection, identification, and tracking, it meets the requirements of aerial mapping, surveillance, and reconnaissance. Highly adaptable, the unit can be mounted on various platforms—including UAVs, ships, and vehicles—to support maritime and aerial operations. An optional in-house AI-based recognition and tracking function is also available.

Visible-light Camera：

Wavelength: 0.4 μm – 0.9 μm

Resolution: 4056x3040 (fixed focus), 5120x3840 (zoom)

Focal length: 4.5 mm (fixed focus), 7.06 mm – 122 mm (zoom)

Field of view: 50º – 3.27º

Detection range: Human 2.7 km, Vehicle 16.3 km

Recognition range: Human 1.4 km, Vehicle 8.2 km

Servo Performance：

Stabilization accuracy: ≤0.01°

Azimuth axis range: ±320°

Pitch axis range: -120° to +30°

Roll axis range: -60° to +60°

Infrared Camera:

Wavelength: 8μm–14μm

Resolution: 640x512

Pixel size: 12μm

NETD: 50mK

Focal length: 18mm

Field of view: 24.2º × 19.5º

Detection range: Human 0.5km, Vehicle 3.0km

Recognition range: Human 0.3km, Vehicle 1.5km

Tracking Performance:

Tracking rate: 56 pixels/frame

Minimum target contrast: 5%

Minimum target size: 4×3 pixels

Features: Capable of maintaining track despite occlusion

Laser Ranging:

Wavelength: 905 nm

Ranging Range: 5 m – 1.5 km

Ranging Accuracy: ≤1 m (≤300 m), ≤±2 m (>300 m)

System Parameters:

Dimensions: ≤167mm × 135mm × 161mm

Weight: ≤900g

Power Supply: 12V

Power Consumption: Average ≤15W, Peak ≤30W

Operating Temperature: -20°C to 55°C

Storage Formats:

Photo format: JPEG

Video format: MP4

Control Interface: 100M/1000M Ethernet (optional), RS422 (TTL/RS232/CAN/SBUS optional)

Video Interface: 100M Ethernet (1000M Ethernet/USB optional)
