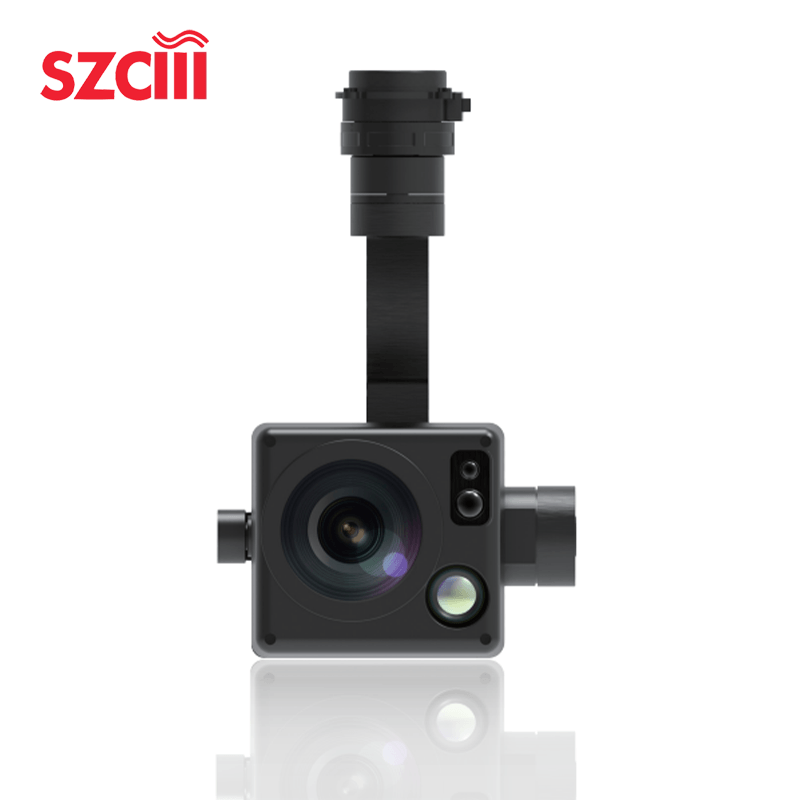

The SZCIII PT130CT is a compact, intelligent gimbal system featuring a three-axis gyro-stabilized platform. It integrates a 30x HD visible-light camera, an uncooled long-wave infrared (LWIR) imaging module, and a laser rangefinder. Designed primarily for airborne ground imaging, detection, identification, and tracking, it meets the requirements of aerial mapping, surveillance, and reconnaissance. Highly adaptable, the unit can be mounted on various platforms—including UAVs, ships, and vehicles—to support maritime and aerial operations. An optional in-house developed AI-based recognition and tracking function is also available.

Visible-light Camera：

Wavelength: 0.4 μm – 0.9 μm

Resolution: 3840 x 2160

Focal length: 6.91 mm – 214.6 mm (30x optical, 10x digital)

Field of view: 59º – 1.98º

Detection range: Human 8.9 km, Vehicle 3.4 km

Recognition range: Human 20.1 km, Vehicle 10.1 km

Servo Performance：

Stabilization accuracy: ≤0.01°

Azimuth axis range: ±320°

Pitch axis range: -120° to +30°

Roll axis range: -60° to +60°

Infrared Camera:

Wavelength: 8μm–14μm

Resolution: 640x512

Pixel Pitch: 12μm

NETD: 50mK

Focal Length: 50mm/F1.1

Field of View: 15.8º×12.7º

Detection Range: Human 1.5km, Vehicle 9km

Recognition Range: Human 0.7km, Vehicle 4.2km

Tracking Performance:

Tracking rate: 56 pixels/frame

Minimum target contrast: 5%

Minimum target size: 4×3 pixels

Features: Capable of maintaining track despite occlusion

Laser Ranging:

Wavelength: 905 nm

Ranging range: 5 m – 1.5 km

Ranging accuracy: ≤1 m (≤300 m), ≤±2 m (>300 m)

System Parameters:

Dimensions: ≤190mm × 127mm × 211mm

Weight: ≤1.2kg

Power supply: 12V

Power consumption: Average ≤15W, Peak ≤30W

Operating temperature: -20°C to 55°C

Storage Formats:

Photo format: JPEG

Video format: MP4

Control Interfaces: 100M/1000M Ethernet (optional), RS422 (TTL/RS232/CAN/SBUS optional)

Video Interface: 100M Ethernet (1000M Ethernet/USB optional)
