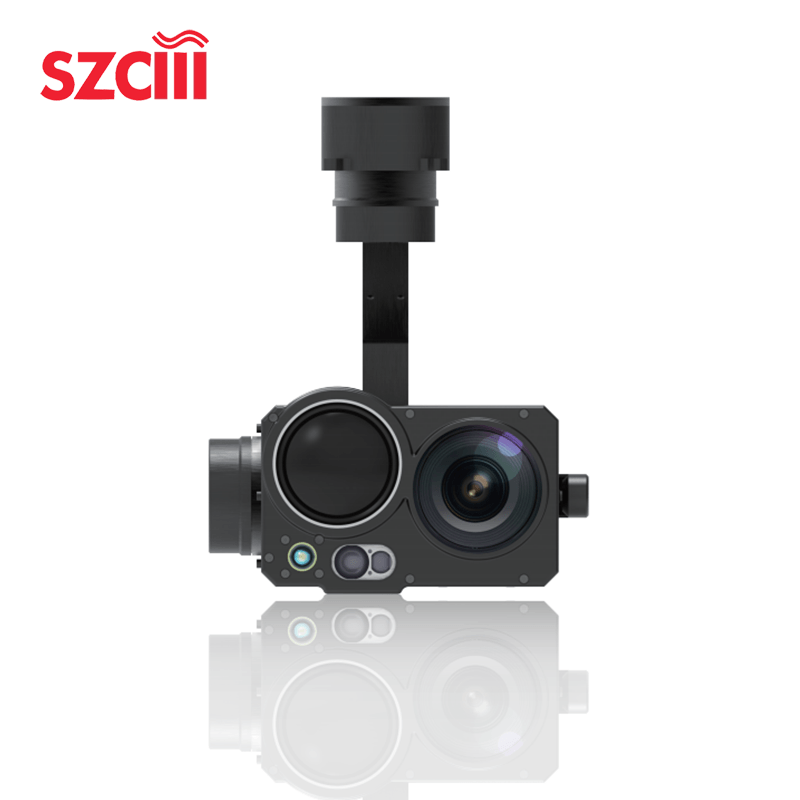

SZCIIIPT123DT is a compact, intelligent gimbal system featuring a three-axis gyro-stabilized platform. It integrates a 30x HD visible-light camera, an uncooled long-wave infrared (LWIR) imaging module, a laser rangefinder, and an infrared laser illuminator. Designed primarily for airborne ground-based imaging, detection, identification, and tracking, it meets the requirements of aerial mapping, surveillance, and reconnaissance. Highly adaptable, the unit can be mounted on various aerial platforms—such as different types of UAVs—as well as on ships and vehicles, supporting both maritime and aerial operations. Optional in-house AI-based recognition and tracking capabilities are available.

Visible-light Camera：

Wavelength: 0.4 μm – 0.9 μm

Resolution: 1920x1080

Focal length: 6.5 mm – 162.5 mm (30x)

Field of view: 58.1º – 2.3º

Detection range: Human 9 km, Vehicle 18 km

Recognition range: Human 3.5 km, Vehicle 10 km

Servo Performance：

Maximum angular velocity: ≥50°/s

Azimuth axis range: ±160°

Pitch axis range: -120° to +60°

Roll axis range: -60° to +60°

Maximum angular acceleration: ≥90°/s

Infrared Camera:

Wavelength: 8μm–14μm

Resolution: 640x512

Pixel pitch: 12μm

NETD: 50mK

Focal length: 50mm/F1.1

Field of view: 15.8º × 12.7º

Detection range: Human 1.5km, Vehicle 9km

Recognition range: Human 0.6km, Vehicle 3.4km

Tracking Performance:

Tracking rate: 20 pixels/frame

Minimum target contrast: 8%

Minimum target image size: 80×80 pixels

Features: Capable of maintaining tracking despite occlusion

Laser Ranging:

Wavelength: 905 nm

Ranging Range: ≤1.2 km

Ranging Accuracy: ±5 m

Laser Illuminator:

Wavelength: 850 nm

Effective Range: >400 m

System Parameters:

Dimensions: ≤175mm × 154mm × 196mm

Weight: ≤1.15kg

Power supply: 12V

Power consumption: Average ≤30W

Operating temperature: -20°C to 55°C

Storage Formats:

Photo format: JPEG

Video format: MP4

Control interface: 1 x TTL / 100 Mbps Ethernet

Video interface: 1 x 100 Mbps Ethernet
