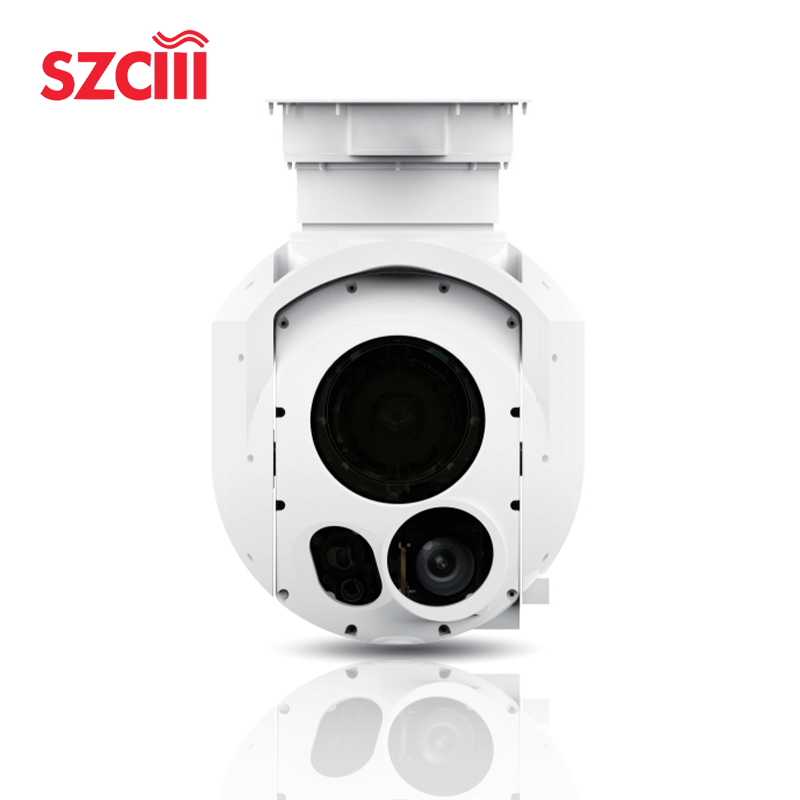

The TS240C is a two-axis medium-sized intelligent pod, equipped with a 15x high-definition visible light camera, mid-wave refrigerated infrared imaging module, and a laser imaging sensor. Advanced high-precision and high-coordination control algorithms maintain stable zooming and imaging quality during flight, supporting electronic zoom and image enhancement functions. It is suitable for various unmanned aircraft platforms and can perform tasks day and night. It is fully compatible with various carriers and can be installed on various types of unmanned aircraft, as well as on ships and vehicles, meeting requirements for sea and air use. Optional panoramic self-developed AI recognition and tracking function is available.

Visible light camera:

Wavelength: 0.4μm to 0.9μm

Resolution: 1920x1080

Focal length: 10mm to 150mm (15X)

Field of view: 35° to 2.3°

Detection distance: 6.6km for humans, 15.2km for vehicles

Identification distance: 1.6km for humans, 9.9km for vehicles

Servo performance:

Stability accuracy: ≤ 100 μrad (1σ) (2°/1Hz, 1°/2Hz sway)

Angle measurement accuracy: ≤ 2 mrad

Maximum angular velocity: ≥ 60°/s

Maximum angular acceleration: ≥ 90°/s²

Azimuth axis range: n×360° continuous rotation

Pitch axis range: -120° to +90°

Infrared camera:

Wavelength: 3μm - 5μm

Resolution: 640x512

Pixel size: 15μm

NETD: 25mk

Focal length: 19 - 275mm / F5.5

Field of view: 28° - 2.05°

Detection range: 3km for humans, 15km for vehicles

Identification range: 1km for humans, 6km for vehicles

Laser ranging:

Wavelength: 1064nm

Ranging range: 180m to 10km

Energy: 60mJ

Ranging accuracy: 2m

Ranging frequency: 1 to 5Hz

Tracking performance:

Tracking rate: 30 pixels per frame

Minimum target contrast: 8%

Minimum target imaging: 4×3 pixels

Features: Capable of resisting occlusion without loss

System parameters:

Dimensions: ≤Φ240mm × 322mm

Weight: 10kg

Power supply: 24V

Power consumption: Average ≤ 80W, Peak ≤ 300W

Operating temperature: -20℃ to 55℃

Storage format:

Photo format: JPEG

Video format: MP4

External interfaces:

Control interface: 2 channels of RS422

Video interface: 1 channel of HD-SDI
