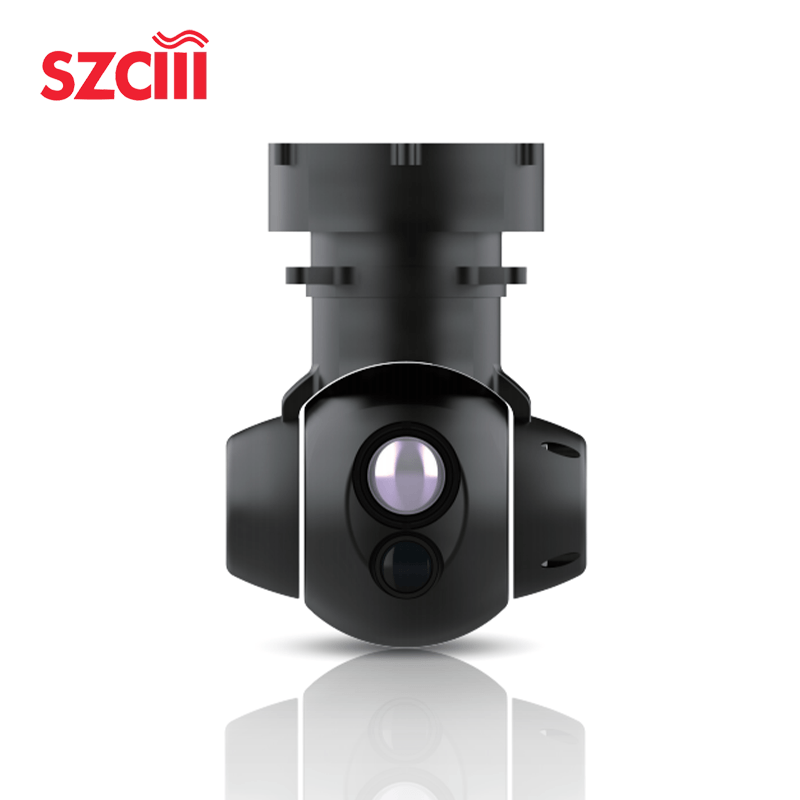

The TS64B is a compact, lightweight, and smart micro-gimbal featuring a miniaturized industrial design and a weight of ≤217g. It integrates a high-definition visible-light camera and an uncooled long-wave infrared (LWIR) imaging module on a two-axis gyro-stabilized platform, ensuring stable zooming and imaging performance during flight. Primarily used for ground-based imaging, detection, identification, and tracking, it meets the requirements of aerial mapping, surveillance, and surveying. An optional AI-based recognition and tracking function, developed in-house by Feilan, is also available.

Visible-light camera：

Wavelength: 0.4 μm–0.9 μm

Resolution: 3840x2160

Focal length: 7.2 mm

Field of view: 56.14° x 33.40°

Detection range: Human 0.5 km, Vehicle 2.7 km

Recognition range: Human 0.1 km, Vehicle 0.7 km

Servo Performance：

Stabilization accuracy: ≤100 μrad (1σ)

Maximum angular velocity: ≥60°/s

Maximum angular acceleration: ≥90°/s²

Azimuth axis range: ±160°

Pitch axis range: -90° to +30°

Infrared Camera:

Wavelength: 8μm–14μm

Resolution: 640×512

Pixel Pitch: 12μm

NETD: 50mK

Focal Length: 19mm

Field of View: 22.85°×18.37°

Detection Range: Human 0.5km, Vehicle 3.2km

Recognition Range: Human 0.3km, Vehicle 1.6km

Tracking Performance:

Tracking rate: 56 pixels/frame

Minimum target contrast: 5%

Features: Capable of maintaining track despite occlusion

System Parameters:

Dimensions: ≤Φ63mm × 89.7mm

Weight: ≤217g

Power Supply: 12V

Power Consumption: Average ≤10W, Peak ≤20W

Operating Temperature: -20°C to 55°C

Storage Formats:

Photo format: JPEG

Video format: MP4

External Interfaces:

Communication interface: 1 x RS422 (RS232 optional)

Video interface: 1 x Network port
