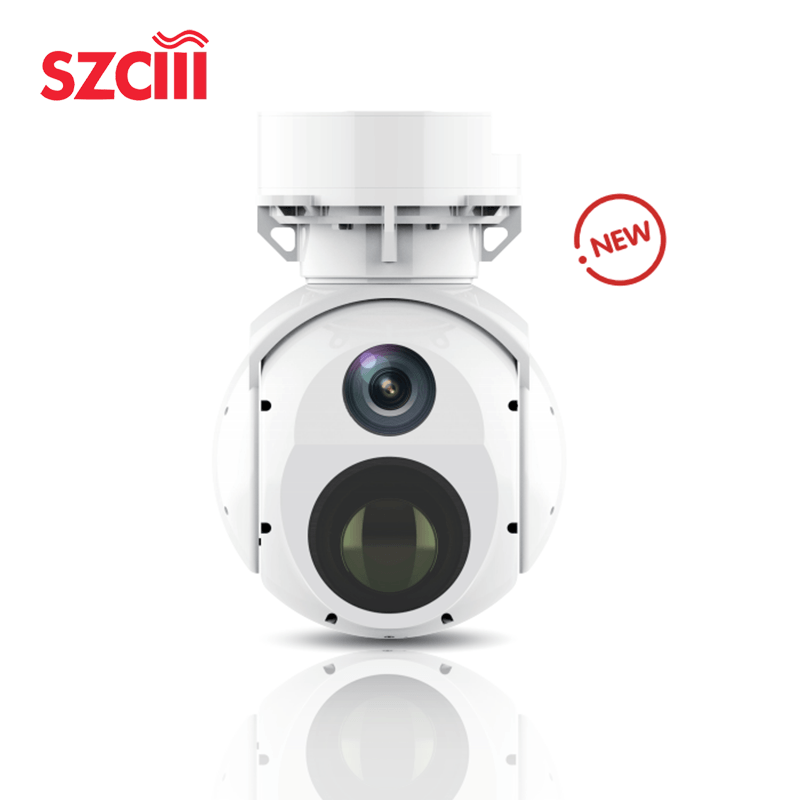

TS180B is a newly developed two-axis small intelligent pod. It is equipped with a 30x continuous zoom high-definition visible light camera, a long-wave non-cooled infrared imaging component, and high-precision and high-coordination control algorithms that maintain stable zooming and imaging effects during flight. It supports electronic zoom and image enhancement functions. It is suitable for various unmanned aircraft platforms and can perform tasks day and night. It is mainly used for conducting search, detection, identification, tracking, ranging, positioning, guidance, and scene matching for airborne ground targets. It can also be optionally equipped with the AI recognition and tracking function developed by Feilian.

Visible light camera:

Wavelength: 0.4μm to 0.9μm

Resolution: 1920x1080

Focal length: 5.1mm to 153mm (30X)

Field of view: 55.27° to 2.66°

Detection range: 9.9km for humans, 15.2km for vehicles

Identification range: 1.6km for humans, 9.9km for vehicles

Servo performance:

Visual axis accuracy: ≤ 4 mrad

Azimuth angle accuracy: ≤ 4 mrad

Maximum angular velocity: ≥ 40º/s

Azimuth axis range: Continuous rotation of n × 360°

Pitch axis range: -120° to +10°

Maximum angular acceleration: ≥ 60º/s²

Infrared camera:

Wavelength: 8μm - 14μm

Resolution: ≥ 1280x1024

Pixel size: 12μm

NETD: 40mk

Focal length: 75mm

Field of view: 11.69° × 9.37°

Detection distance: 2km for humans, 9.5km for vehicles

Identification distance: 0.52km for humans, 2.3km for vehicles

Tracking performance:

Tracking rate: 56 pixels per frame

Minimum target contrast: 5%

Minimum target imaging: 4×3 pixels

Features: Capable of resisting occlusion without loss

System parameters:

Dimensions: 180mm × 198mm × 266.8mm

Weight: ≤ 3.7kg

Power supply: 28V

Power consumption: Average ≤ 40W, Peak ≤ 80W

Operating temperature: -40℃ to 55℃

Storage format:

Photo format: JPEG

Video format: MP4

External Interfaces:

Communication Interface: 100Mbps network, RS422 (TTL/RS232 options available)

Video Interface: 100Mbps network (SDI option available)
