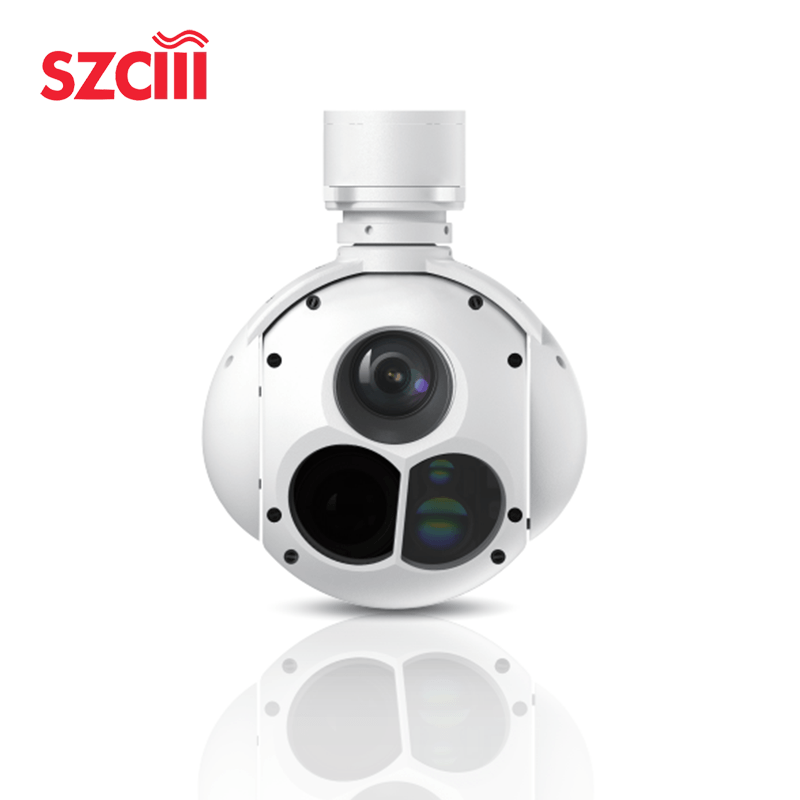

TS110C UAV / Drone Gimbal Camera Pods

Three Cameras

The TS110C is a compact, intelligent gimbal system featuring a conductive slip ring that enables continuous 360° rotation. It integrates a 10x HD visible-light camera, an uncooled long-wave infrared (LWIR) imaging module, and a laser rangefinder. Designed primarily for airborne ground-based imaging—including detection, identification, tracking, and laser ranging/positioning—it meets the requirements of aerial surveying, surveillance, and reconnaissance. Highly versatile, the system is compatible with a wide range of platforms, including various UAVs, ships, and vehicles, making it suitable for both maritime and aerial operations. An optional AI-based recognition and tracking function, developed in-house by Feilan, is also available.

Visible Light Camera：

Wavelength: 0.4 μm–0.9 μm

Resolution: 1920x1080

Focal length: 5.1 mm–153 mm

Field of view: 55.3º–2.6º

Detection range: Human 2.3 km, Vehicle 7 km

Recognition range: Human 0.6 km, Vehicle 3.5 km

Servo Performance：

Angular measurement accuracy: ≤2 mrad

Stabilization accuracy: ≤100 μrad (1σ) (sway: 2°/1 Hz, 1°/2 Hz)

Maximum angular velocity: ≥50°/s

Azimuth axis range: n×360° continuous rotation
