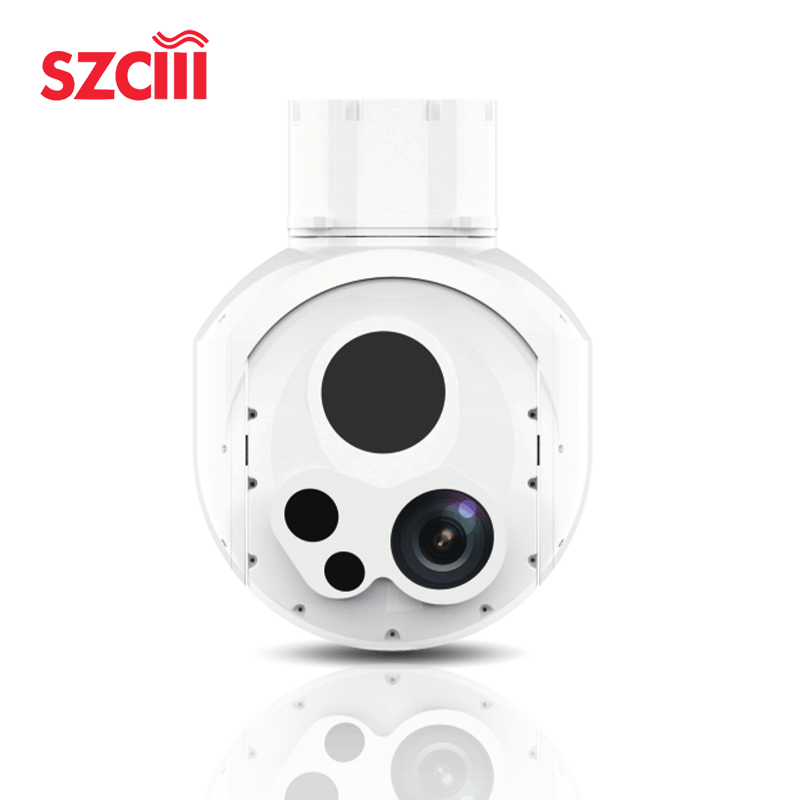

The TS290C is a two-axis medium-sized intelligent pod, equipped with a 15x high-definition visible light camera, mid-wave refrigerated infrared imaging module, and a laser imaging sensor. Advanced high-precision and high-coordination control algorithms maintain stable zooming and imaging quality during flight, supporting electronic zoom and image enhancement functions. It is suitable for various unmanned aircraft platforms and can perform tasks day and night. It is fully compatible with various carriers and can be installed on various types of unmanned aircraft, as well as on ships and vehicles, meeting requirements for sea and air use. Optional panoramic self-developed AI recognition and tracking function is available.

Visible light camera

Wavelength: 0.4μm - 0.9μm

Resolution: 1920x1080

Focal length: 17 - 200mm / F5

Field of view: 25.46° - 2.2°

Detection range: 6.6km for humans, 15.2km for vehicles

Identification range: 1.6km for humans, 9.9km for vehicles

Servo performance

Stability accuracy ≤ 100 μrad (1σ) (2°/1Hz, 1°/2Hz sway)

Angle measurement accuracy ≤ 2 mrad

Maximum angular velocity ≥ 60º/s

Maximum angular acceleration ≥ 90º/s²

Azimuth axis range: continuous rotation of n × 360°

Pitch axis range: -110° to +10°

Infrared camera

Wavelength: 3μm - 5μm

Resolution: 640x512

Pixel size: 15μm NETD 25mk

Focal length: 15 - 300mm / F4

Field of view: 35.49° - 1.83°

Detection distance: 3km for humans, 15km for vehicles

Recognition distance: 1km for humans, 6km for vehicles

Laser ranging

Wavelength: 1064nm

Ranging range: 180m to 10km

Ranging accuracy: 2m

Ranging frequency: 1 to 5Hz

Energy: 60mJ

Tracking performance

Tracking rate: 30 pixels per frame

Minimum target contrast: 8%

Minimum target imaging: 4×3 pixels

Features: Capable of resisting occlusion without loss

System parameters

Dimensions ≤ Φ290mm × 380mm

Weight 15.1kg

Power supply 24V

Power consumption Average ≤ 80W, Peak ≤ 300W

Operating temperature -20℃ to 55℃

Storage format

Photo format: JPEG

Video format: MP4

External interfaces

Communication interface: 1 RS422 interface or 1 100Mbps network interface

Video interface: 1 100Mbps network interface
