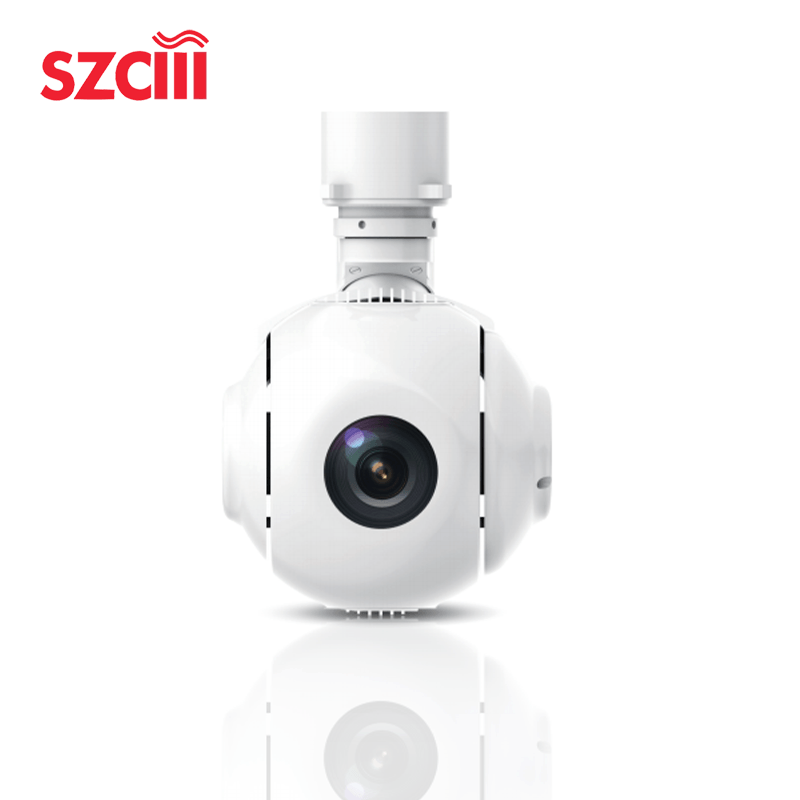

TS120AT is a three-axis small intelligent pod. It uses a conductive slip ring for 360° continuous rotation. It is equipped with a high-definition visible light camera. The high-precision and high-coordination control algorithms ensure stable zooming and imaging quality during flight. It supports electronic zoom and image enhancement functions. It is mainly used for ground imaging detection, recognition, and tracking, meeting the needs of aerial mapping, monitoring, and exploration. It can be optionally equipped with the AI recognition and tracking function developed by Feilian.

Visible Light Camera：

Wavelength: 0.4μm to 0.9μm

Resolution: 1920x1080

Focal length: 5.1mm to 153mm

Field of view: 55.3° to 2.6°

Detection distance: 6.6km for humans, 15.2km for vehicles

Identification distance: 1.6km for humans, 9.9km for vehicles

Servo Performance：

Stability accuracy ≤ 100 μrad (1σ) (2°/1Hz, 1°/2Hz sway)

Maximum angular velocity ≥ 50°/s

Azimuth axis range: continuous rotation of n × 360°

Pitch axis range: -110° to +10°

Roll axis range: -40° to +40°

Maximum angular acceleration ≥ 90°/s²

Tracking Performance：

Tracking rate: 56 pixels per frame

Minimum target contrast: 5%

Minimum target imaging: 4×3 pixels

Feature: Capable of resisting occlusion without loss

System Parameters:

Dimensions: ≤Φ120mm x 184mm

Weight: ≤810g

Power supply: 12V

Power consumption: Average ≤ 15W, Peak ≤ 30W

Operating temperature: -20℃ to 55℃

Storage format

Photo format: JPEG

Video format: MP4

External interfaces

Communication interface: 1 Gigabit Ethernet port (1 TTL/RS422 option available)

Video interface: 1 Gigabit Ethernet port
