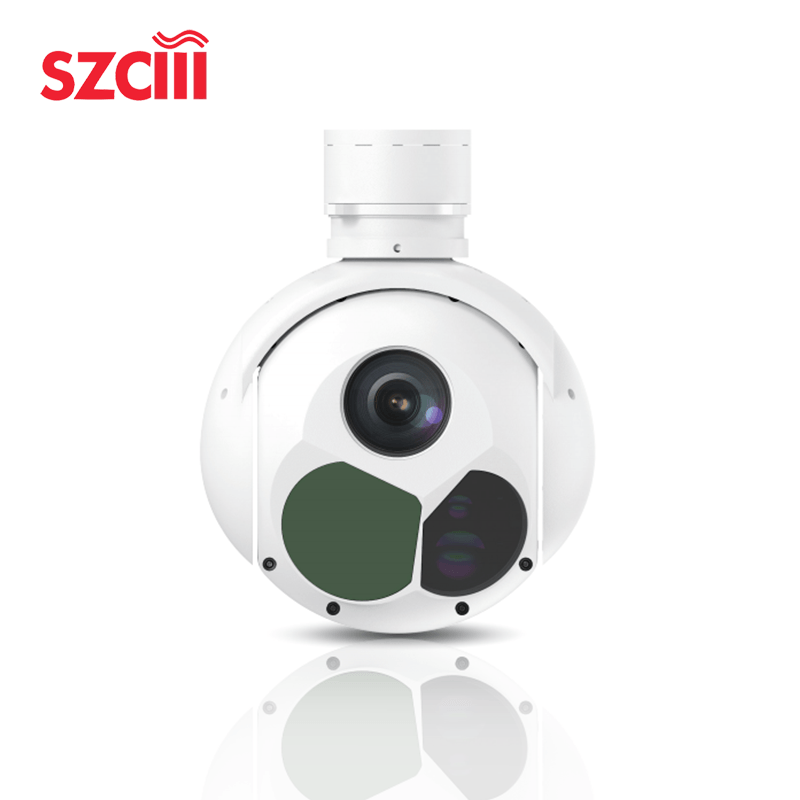

TS130C is a small intelligent pod equipped with a two-axis stabilization platform. It uses conductive slip rings for 360° continuous rotation and is internally equipped with a 30x high-definition visible light camera, a long-wave non-cooled infrared imaging component, and a laser rangefinder. It is mainly used for ground imaging detection, identification, tracking, ranging and positioning, meeting the needs of aerial mapping, monitoring, and exploration. It is fully compatible with various carriers, which can be installed on various types of unmanned aircraft or on ships and vehicles, meeting sea and air usage requirements. The optional FlyView self-developed AI recognition and tracking function is also available.

Visible Light Camera：

Wavelength: 0.4μm to 0.9μm

Resolution: 1920x1080

Focal length: 5.1mm to 153mm

Field of view: 55.3º to 2.6º

Detection range: 6.6km for humans, 15.2km for vehicles

Identification range: 1.6km for humans, 9.9km for vehicles

Servo Performance：

Angle measurement accuracy ≤ 2 mrad

Stability accuracy ≤ 100 μrad (1σ) (2°/1Hz, 1°/2Hz sway)

Maximum angular velocity ≥ 50º/s

Azimuth axis range: continuous rotation of n × 360°

Pitch axis range: -110° to +10°

Maximum angular acceleration ≥ 90º/s²

Tracking Performance：

Tracking rate: 30 pixels per frame

Minimum target contrast: 8%

Minimum target imaging: 4×3 pixels

Features: Capable of resisting occlusion without loss

System Parameters:

Size ≤ Φ130mm × 180.8mm

Weight ≤ 1.3Kg

Power Supply 12V

Power Consumption Average ≤ 18W, Peak ≤ 45W

Operating Temperature -20℃～55℃

Infrared Camera:

Wavelength: 8μm - 14μm

Resolution: 640×512

Pixel size: 12μm NETD 50mk

Focal length: 35mm / F1.0

Field of view: 12.5° × 10°

Detection distance: 1km for humans, 6km for vehicles

Recognition distance: 0.5km for humans, 2.9km for vehicles

Laser ranging

Wavelength: 1535nm

Ranging range: 50m to 3km

Ranging accuracy: ±1m

Ranging frequency: 5Hz

Storage format

Photo format: JPEG

Video format: MP4

External interfaces

Communication interface: 1 Gigabit Ethernet port (1 TTL/RS422 option available)

Video interface: 1 Gigabit Ethernet port
