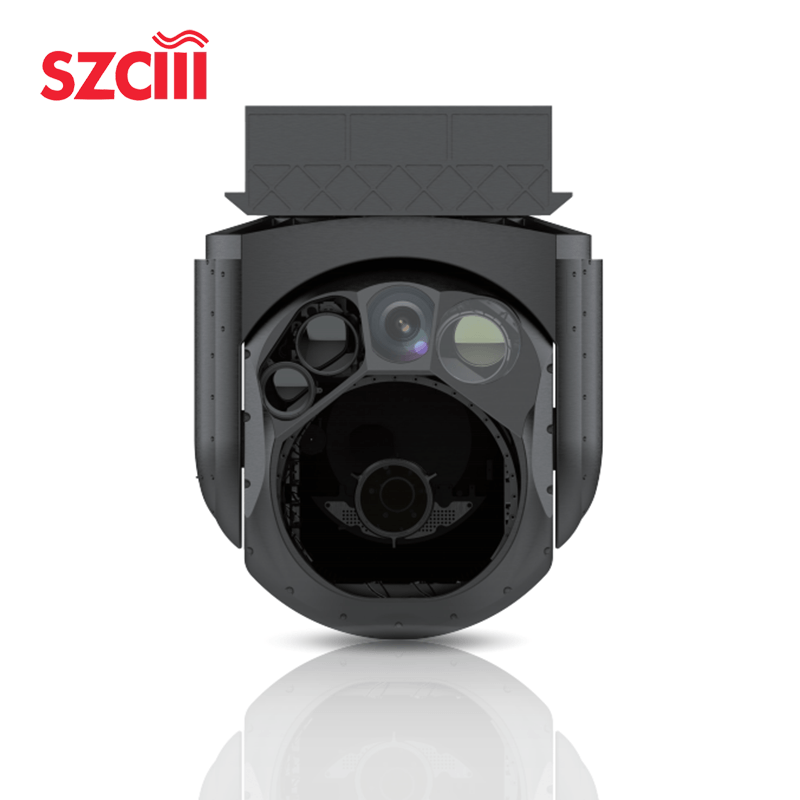

The TS508D is a large-scale intelligent pod. It adopts multi-band co-aperture technology and is equipped with a conductive slip ring for 360° continuous rotation. It is internally equipped with high-definition visible light/near-infrared cameras, mid-wave cooled infrared imaging components, short-wave infrared imaging components, laser illuminators, and has functions such as spot tracking and electronic zoom. It is mainly used for airborne ground imaging detection, identification, tracking, ranging and positioning, laser guidance, etc., meeting the needs of aerial mapping, monitoring, exploration, guidance, etc. It is compatible with all platforms and can be installed on various types of unmanned aircraft and other aviation platforms, as well as on ships and vehicles, suitable for sea and air usage. It can also be optionally equipped with the AI recognition and tracking function developed by Feilai.

Mid-wave infrared camera

Wavelength: 3.7μm - 4.8μm

Resolution: 640×512

Navigation field of view: 30°×24°

Large field of view: 7.44°×6°

Medium field of view: 1.86°×1.5°

Small field of view: 0.47°×0.37°

Detection range: 30km

Identification range: 20km

Color visible light camera

Wavelength: 0.486μm to 0.656μm

Resolution: 1920x1080

Continuous zoom field of view: 30.6º×17.2º to 1.53º×0.86º

Detection distance: 12km

Identification distance: 7km

Short-wave infrared camera

Wavelength: 0.95μm to 1.7μm

Resolution: 640x512

Small field of view: 0.45°×0.36°

Medium field of view: 1.86°×1.5°

Large field of view: 7.44°×6°

Laser illumination

Wavelength: 1064nm

Energy: ≥ 80mJ

Distance measurement accuracy: ±2m

Illumination coding: 8 groups, adjustable and expandable

Illumination range: 300m to 30km

Near-infrared camera

Wavelength: 0.65μm to 0.9μm

Resolution: 1920×1080

Continuous zoom field of view: 30.6º×17.2º to 1.53º×0.86º

Small field of view: 0.5º×0.5º

Detection distance: 45km

Identification distance: 30km

Spot search and tracking

Wavelength: 1064nm

Detector: Quadrant type

Field of view: ≥ 4°

Search and tracking range: ≥ 10km

System parameters

Dimensions ≤ Φ508mm × 700mm

Weight 120kg

Power supply 28V

Total system power consumption: average ≤ 400W, peak ≤ 700W

Operating temperature -45℃ to +60℃

Video interface 4 channels HD-SDI

Communication interface 1 channel RS42
