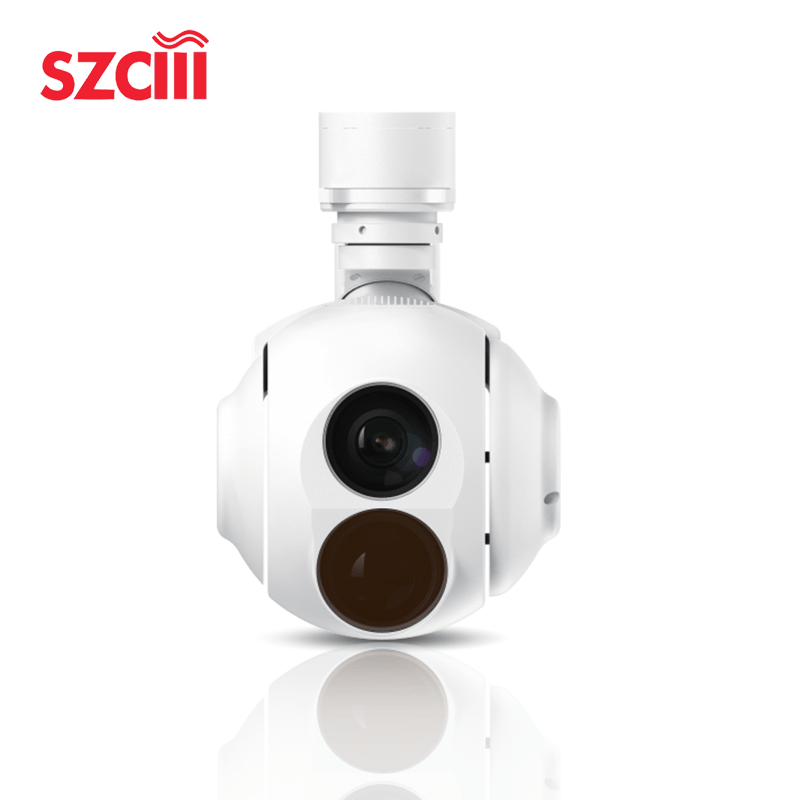

The TS120BT is a three-axis small-sized intelligent pod. It is equipped with a conductive slip ring for 360° continuous rotation. It is internally equipped with a high-definition visible light camera and a long-wave non-cooled infrared imaging component. The high-precision and high-coordination control algorithm ensures stable zooming and imaging results during flight. It supports electronic zooming and image enhancement functions. It is mainly used for ground imaging detection, recognition, and tracking, meeting the needs of aerial surveying, monitoring, and exploration. The optional feature is the self-developed AI recognition and tracking function by Feilian.

Visible Light Camera：

Wavelength: 0.4μm to 0.9μm

Resolution: 1920x1080

Focal length: 5.1mm to 153mm

Field of view: 55.3º to 2.6º

Detection distance: 6.6km for humans, 15.2km for vehicles

Identification distance: 1.6km for humans, 9.9km for vehicles

Servo Performance：

Angle measurement accuracy ≤ 2 mrad

Stability accuracy ≤ 200 μrad (1σ) (1°/1Hz, 1°/2Hz sway)

Maximum angular velocity ≥ 50º/s

Azimuth axis range: continuous rotation of n × 360°

Roll axis range: -40° to +40°

Pitch axis range: -110° to +10°

Maximum angular acceleration ≥ 90º/s²

Tracking Performance：

Tracking rate: 30 pixels per frame

Minimum target contrast: 8%

Minimum target imaging: 4×3 pixels

Features: Capable of resisting occlusion without loss

System Parameters:

Size ≤ Φ120mm x 184mm

Weight ≤ 950g

Power Supply 12V

Power Consumption Average ≤ 15W, Peak ≤ 30W

Operating Temperature -20℃ to 55℃

Infrared Camera:

Wavelength: 8μm - 14μm

Resolution: 640×512

Pixel size: 12μm NETD 50mk

Focal length: 35mm / F1.0

Field of view: 12.5º × 10º

Detection distance: 1km for humans, 6km for vehicles

Recognition distance: 0.5km for humans, 2.9km for vehicles

Storage format

Photo format: JPEG

Video format: MP4

External interfaces

Communication interface: 1 path of 100Mbps network / RS422

Video interface: 1 path of 100Mbps network
